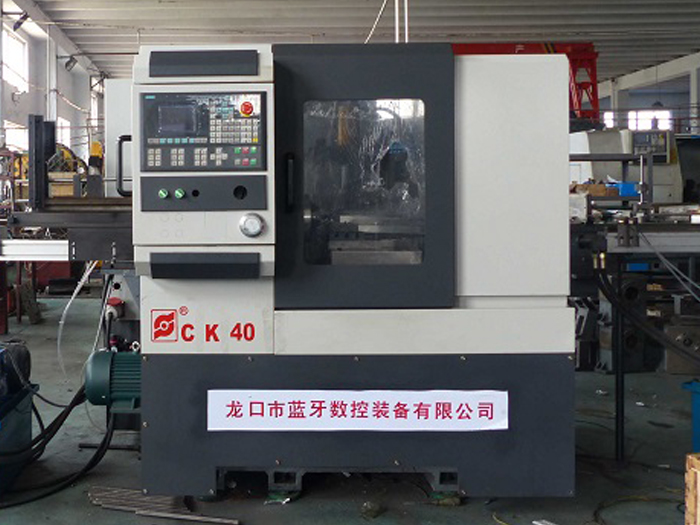

CK-40 CNC turning machine
- Brand: Bluetooth
- Type: CK-40
- Price: RMB
- Promotion: RMB ( 0 Customers Bought)
CK-40 CNC turning machine
Main technical data
|
Controls |
Siemens801 |
| Max.workpiecediameter | 40mm |
| Max.workpiecediameter | 100mm |
| Feed rate:X/Z axis | 100/150mm |
| Fast feed X/Z axis | 15m/min |
| Max.cutter head speed | 2000rpm |
| Motorpowerof frequency spindle | 3KW 380V/50Hz |
| Positioning accuracy | X/Z:0.016mm |
| Repeatedpositioning accuracy | X/Z:0.008mm |
| Dimensions | 1200*1000*1500mm |
| Weight | 660kgs |

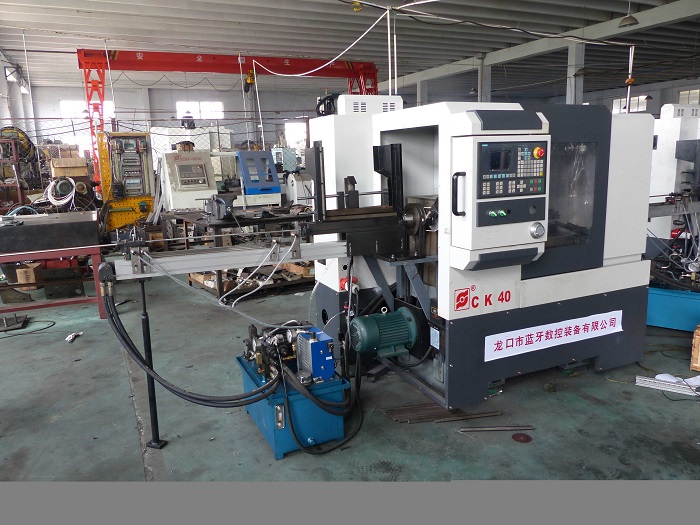

CK series CNC lathe can turn workpiece with high efficiency and precision. And have functions of drilling and threading. The lathe is equipped vibration plate which can up and down the workpieces automatically. And there are CNC systerms optional.
【Service and Technical support】
1、The structure optimization of high strength, high rigidity Meehanite cast iron body fully absorb the cutting vibration, ensure the stability of the machining accuracy of machine tool. Each axis of motion with high precision linear guide and ball screw, imported precision bearing group. The machine can be equipped with automatic feeder, automatic feeder, automatic chip removal, automatic door and all kinds of additional facilities, and flexible production lines, to achieve automatic processing
2、The CNC machine can finish turning,milling etc much more process by once clamping on the one end of the bit.
3、Workpiece will be finish turning ,milling and rubdown basis on once clamping with high efficiency and precision.Then to avoid the accumulated error of the traditional process's multiple clamping.
4、All machine tool system and other configuration according to customer requirements and selection.
5、 the price of the machine tool for processing standard price, customer demand for different, the final price is determined according to the actual situation.
【Pre-After-sales service】
Before sale: to analysis of the drawings, process efficiency, according to customer requirements to provide proof. To provide complete solutions for customers
Sales: binding machine, to provide free technical training, customer Commissioner learning operation, the equipment installation and debugging, you can smooth the normal operation of the production
